N8DOD Northeast Ohio Low Profile

Tri-Band Repeater System

Located in Downtown Warren, Ohio

------------------------------------------------------------------------------------------------------------------------------

146.835 Repeater PL 131.8



General Electric Master II

60 watts from the Duplexer

Antenna Comet GP-9 at 70 ft.



-------------------------------------------------------------------------------------------------------------------------------

224.160 Repeater  PL  131.8





The repeater is a ACS 6000 ( Kendercom )

The  MCS PA-100 Amp is running thru the Wacom Duplexers

66 watts from the duplexers to LMR- 400 feedline

The antenna is a Hustler G7-220  at 65 ft.







Arcom RC-210 Controller

with full time dedicated computer for Software Programing

also controlling

A Kenwood TM-G707 Frequency Agile Remote Base

1/2 hardline into a Comet GP-9  at at 60ft.



-------------------------------------------------------------------------------------------------------------------------------------







  443.725 Repeater   PL  131.8





 Kenwood TS-850 Repeater



  Philps Dodge Celwave 526-4 6 Cavity Duplexers

Antenna is a Comet GP-9 at 70 Ft

with LMR- 400



Arcom RC-210 Controller Also with Kenwood TM-G707 Remote Base













HF Antennas

3 el SteppIR , 20 - 40- 80 meter Coaxial Dipoles









Latest Mobile Install

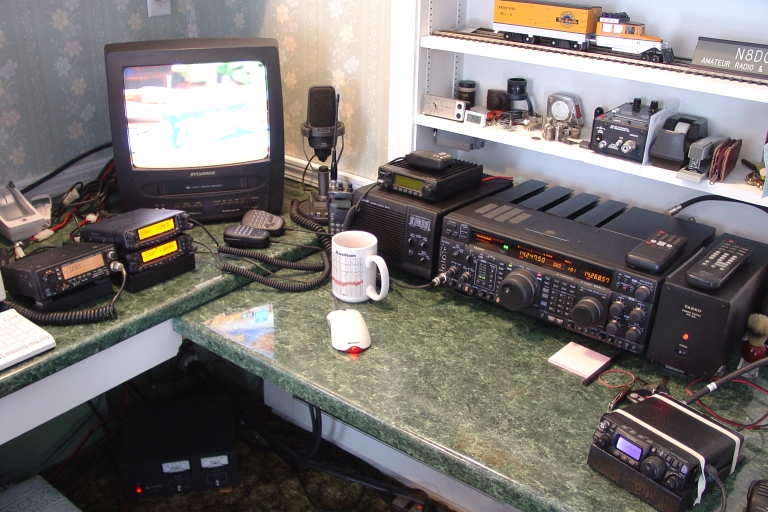

One of my earlier shacks
